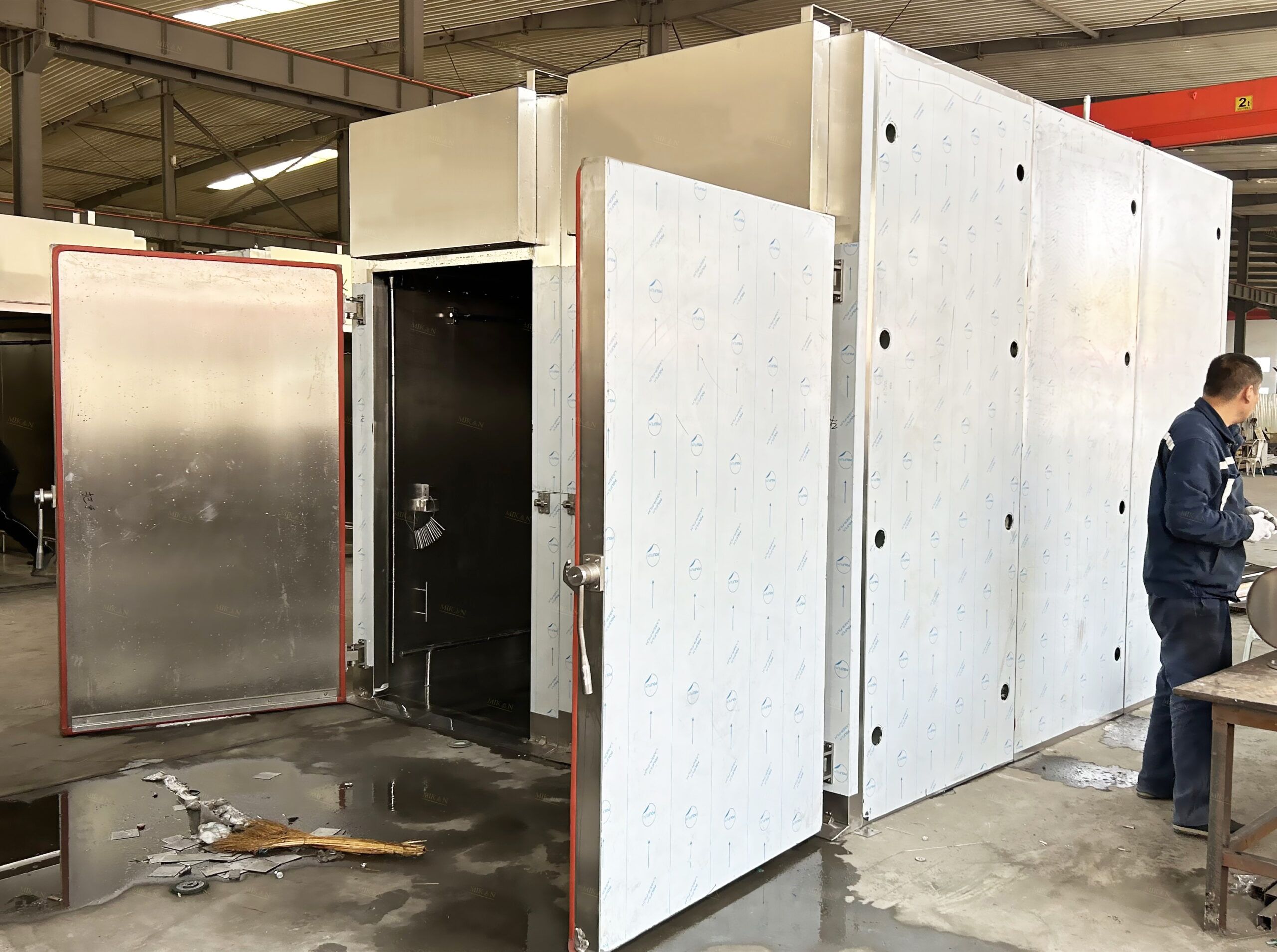

The smokehouse has drying, steaming, smoking, cleaning, and safety protection functions.
| Model | ZXL-750, ZXL-1000, ZXL-1500 |
|---|---|
| Capacity | 750kg/batch, 1000kg/batch, 1500kg/batch |
| Power | 14.4kW, 18.2kW, 22.4kW |
| High Pressure Steam | 0.4-0.7Mpa(same) |
| Low Pressure Steam | ≤0.1～0.05Mpa |
| Steam Consumption | 200kg/h, 300kg/h, 400kg/h |
| Dimension | 3,840*1470*2700mm, 2,560*2,940*2700mm, 3840*2,940*2700mm |
| Weight | 2800kg, 3500kg, 4000kg |
1. The machine adopts SUS304 stainless steel plate and SUS316L stainless steel (thickness 1.5mm) for the air distribution plate. The material thickness of the door panel, side panel, and top panel is 1.5mm, and the bottom panel is 4.0mm.
2.The heat exchanger material is TP304 seamless steel pipe, with a diameter of 12 * 1.5. There are 59 in total, with a large heat exchange area, fast heating, and energy conservation
3.The unique dual guide vane structure, combined with the double-sided guide plates added to the top partition, can evenly distribute the air volume from both sides of the air outlet. Ensure smooth airflow, high thermal efficiency, and more uniform heating of the product.
4. Final Sausage Effect
5. Smokehouses are Installed in Customer Factory
