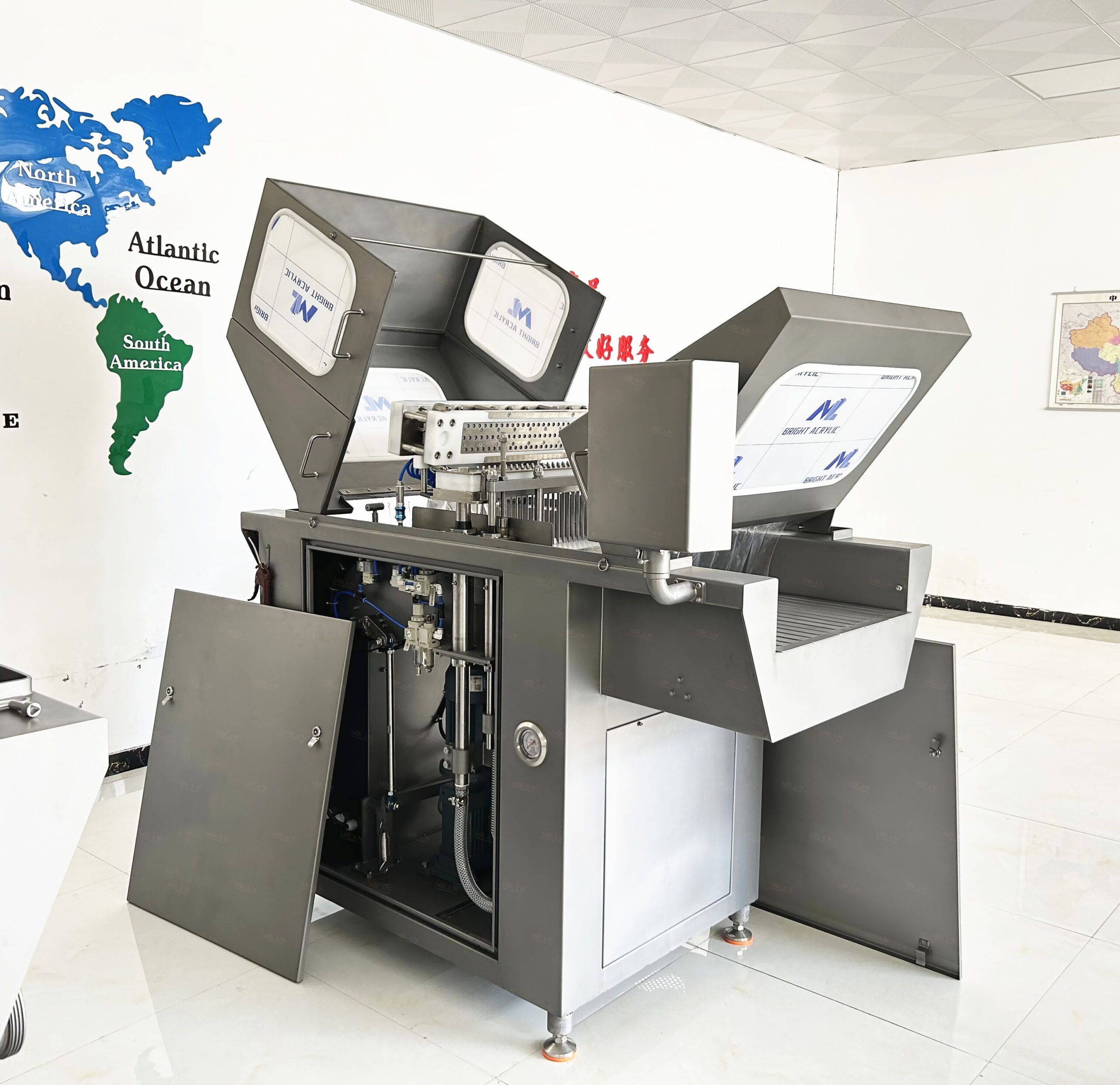

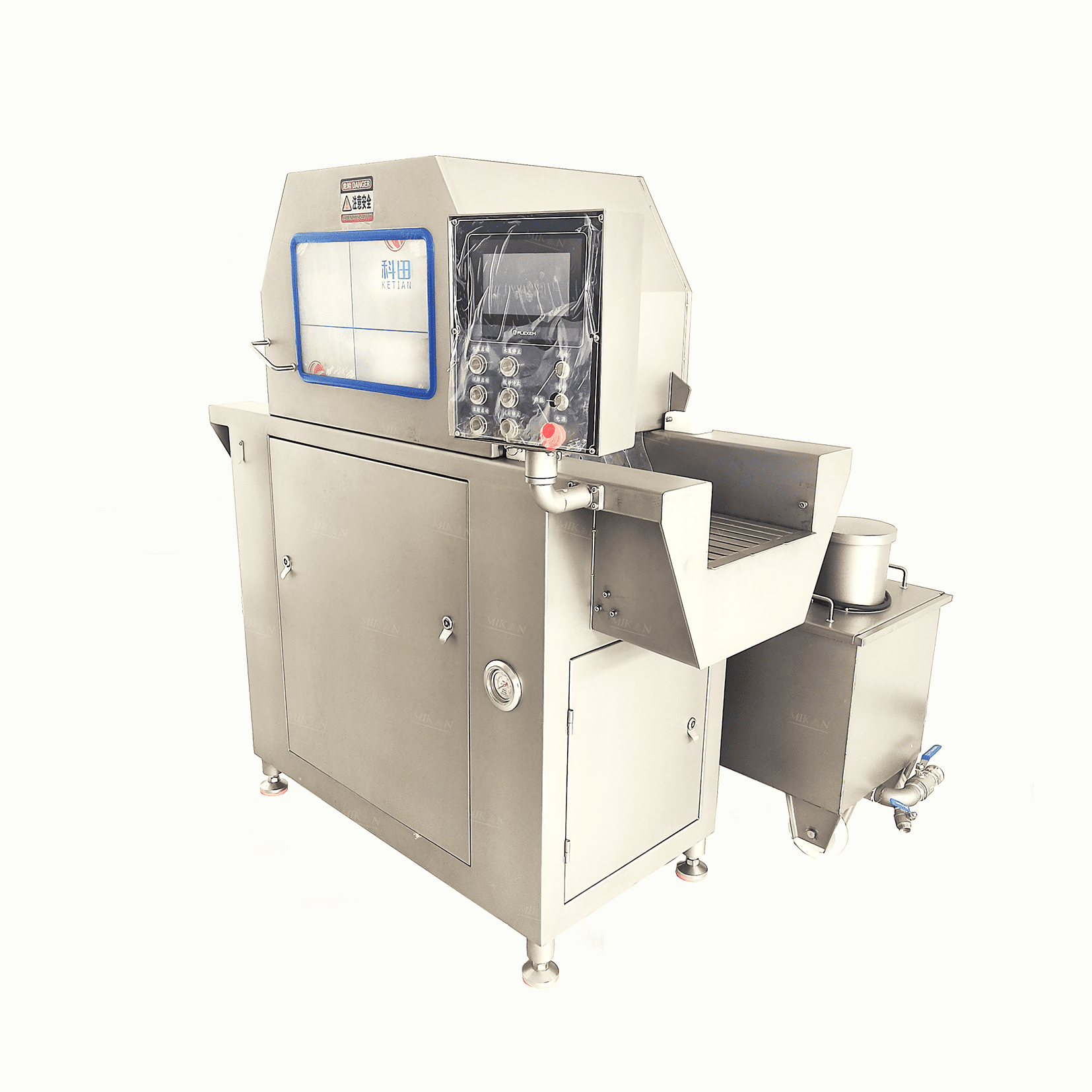

Brine Injector Machine ZSJ-50

It’s suitable for pork, beef, poultry, and fish. By injecting the pickling material into meat fiber directly to highly shorten the pickling time.

Additional information

Capacity	800-1500 kg/h
Injection Speed	17-60 times/min
Injection Height	160mm(200mm customized)
Power	4kW
Injection Presssure	0.2-0.6Mpa
Mixing Tank Volume	110L
Step Space	20-40mm(frequency control)
Injection Rate	60%-80%
Dimension	17007501650mm

Product Details:

1. It’s designed full 304 stainless steel with the function to adjust the stepping speed and stroke as per the specific product and process requirements, so as to evenly inject the saline and the pickling agent into the meat slices and bone-borne meat, giving a shorter pickling period.

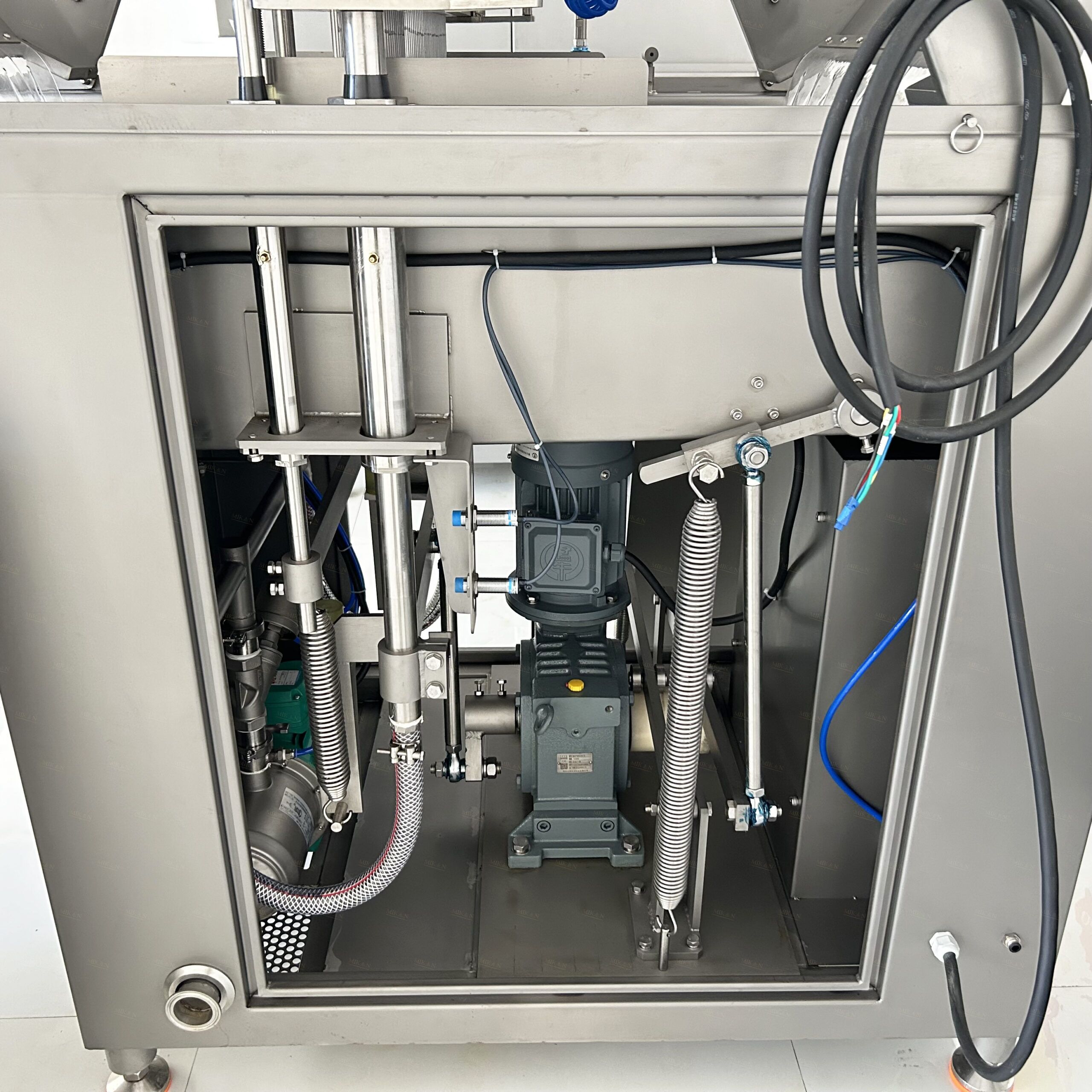

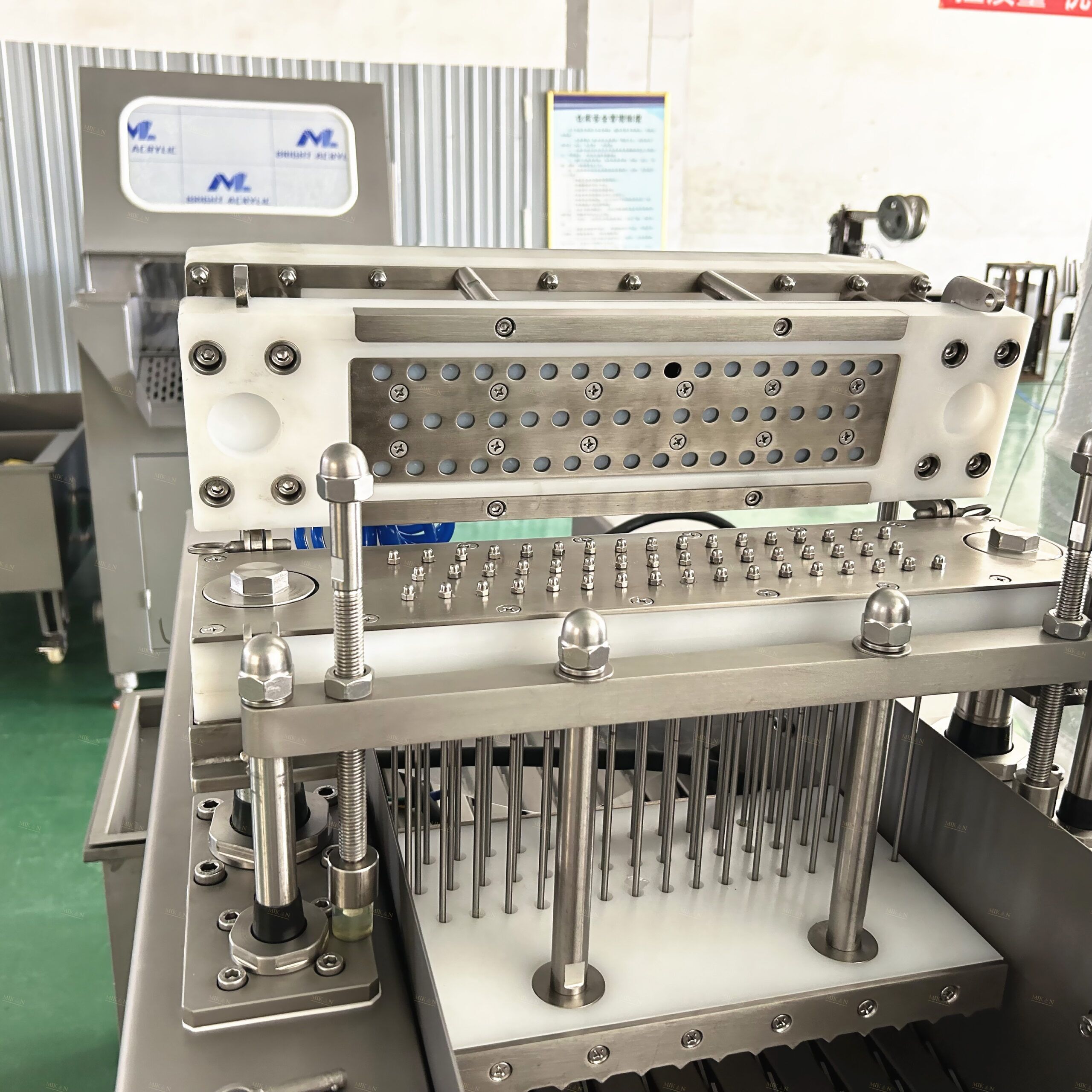

2. The saltwater tank is equipped with a stirrer and three-stage filtration to prevent material sedimentation and pinhole blockage. The automatic needle washing system of the equipment makes needle washing faster and more convenient.
